LTC1414CGN#PBF

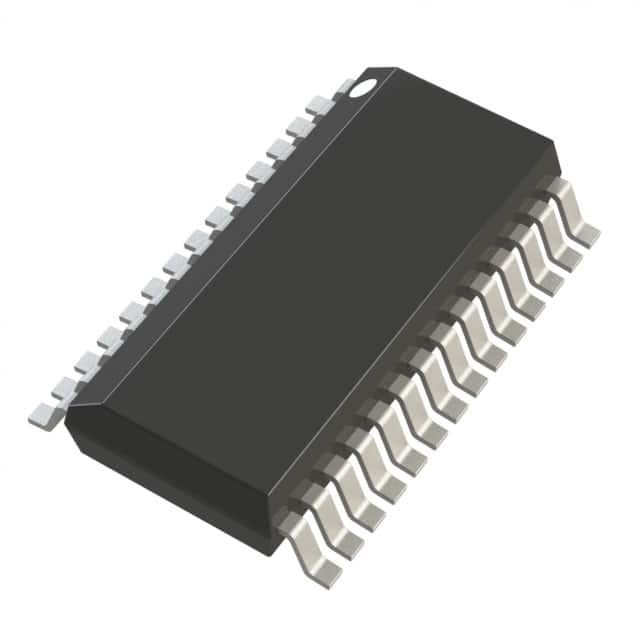

IC ADC 14BIT SAR 28SSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. LTC1414CGN-PBF is a 14-bit successive approximation analog-to-digital converter (ADC) designed for high-speed data acquisition. This component features a single input with selectable differential or single-ended configurations, a 1:1 sample-and-hold ratio, and offers both internal and external reference options. The device achieves a maximum sampling rate of 2.2 MSPS, making it suitable for applications requiring precise measurement and conversion of analog signals. Its 28-SSOP package facilitates surface-mount assembly. Operable across a temperature range of 0°C to 70°C, the LTC1414CGN-PBF supports analog supply voltages of ±5V and a digital supply of 5V. The parallel data interface simplifies integration into various digital systems. This converter finds application in areas such as industrial automation, medical imaging, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 28-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 2.2M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 28-SSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
