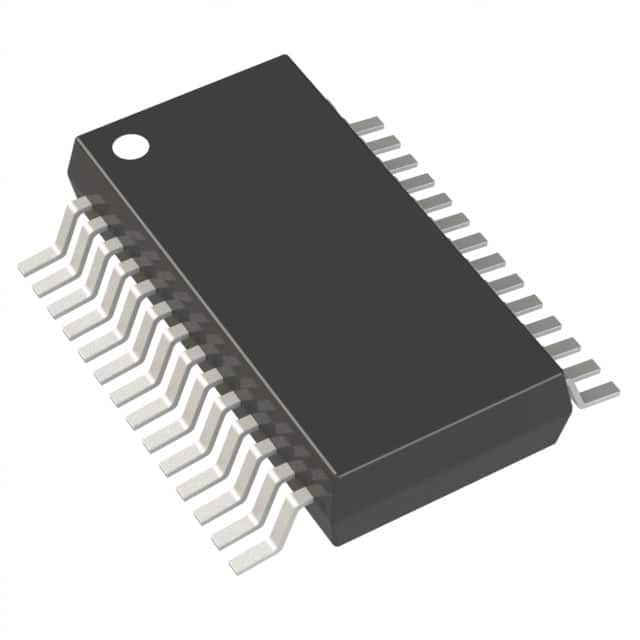

LTC1409CG#TRPBF
IC ADC 12BIT SAR 28SSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC1409CG-TRPBF is a 12-bit Successive Approximation Register (SAR) Analog-to-Digital Converter (ADC) designed for high-speed data acquisition. This component features a single input channel and operates with a sampling rate of up to 800 kSPS. It supports both differential and single-ended input types and offers flexible reference options with internal and external voltage references. The LTC1409CG-TRPBF is housed in a compact 28-SSOP (28-SSOP (0.209", 5.30mm Width)) package, suitable for surface mount applications. Power requirements include ±5V for analog supply and 5V for digital supply. This device finds application in various sectors including industrial automation, medical instrumentation, and communication systems. The component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 800k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 28-SSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
