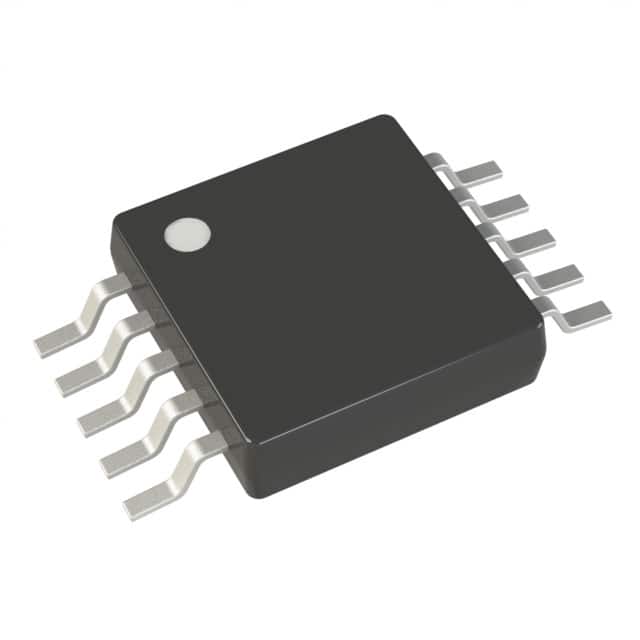

LTC1407IMSE#TRPBF
IC ADC 12BIT PIPELINED 10MSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC1407IMSE-TRPBF is a 12-bit pipelined analog-to-digital converter designed for high-speed data acquisition. This component features a 3Msps sampling rate and supports two input channels, configurable as differential or single-ended. Its pipelined architecture, combined with simultaneous sampling capabilities, makes it suitable for applications requiring precise signal capture. The device interfaces via SPI and offers flexible reference options, both internal and external. Packaged in a 10-MSOP-EP (Exposed Pad) for surface mounting, it operates within a temperature range of -40°C to 85°C. The LTC1407IMSE-TRPBF finds utility in test and measurement equipment, industrial automation, and communication systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-MUX-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Sampling Rate (Per Second) | 3M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 2 |
| Supplier Device Package | 10-MSOP-EP |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 2:1 |
| Number of A/D Converters | 1 |
