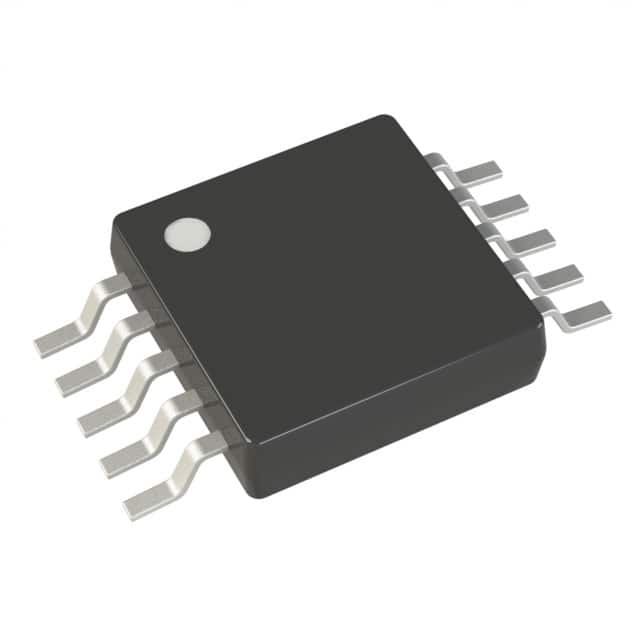

LTC1407HMSE#TRPBF
IC ADC 12BIT PIPELINED 10MSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. presents the LTC1407HMSE-TRPBF, a 12-bit pipelined analog-to-digital converter (ADC). This component features a sampling rate of 3 MSPS, with two input channels supporting both differential and single-ended configurations. The architecture utilizes a Sample-and-Hold (S/H) multiplexer followed by the ADC, with a 2:1 S/H to ADC ratio. Data is interfaced via SPI, and the device supports simultaneous sampling. Reference can be either external or internal. Operating within a temperature range of -40°C to 125°C, it is supplied in a 10-MSOP-EP package with an exposed pad, suitable for surface mounting. The analog and digital supply voltage ranges from 2.7V to 3.6V. This ADC is commonly employed in applications requiring precise high-speed signal conversion, such as medical imaging, data acquisition systems, and high-frequency instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-MUX-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Sampling Rate (Per Second) | 3M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 2 |
| Supplier Device Package | 10-MSOP-EP |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 2:1 |
| Number of A/D Converters | 1 |
