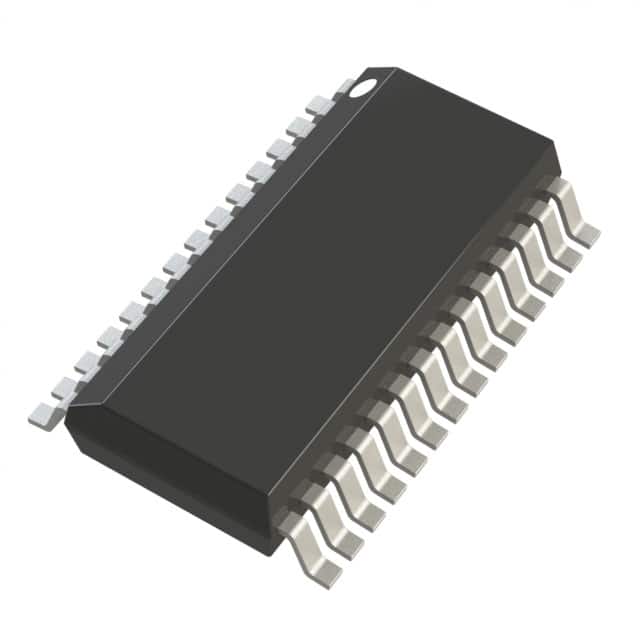

LTC1405CGN#TRPBF
IC ADC 12BIT PIPELINED 28SSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. LTC1405CGN-TRPBF is a 12-bit pipelined Analog-to-Digital Converter (ADC) designed for high-speed data acquisition. This component features a single input channel with a sampling rate of 5 MSPS. The architecture utilizes a Sample-and-Hold (S/H) circuit coupled with a pipelined ADC for efficient conversion. It supports both differential and single-ended input types, offering flexibility in signal conditioning. The data interface is parallel, and the device provides true bipolar operation with selectable external or internal voltage references. Power requirements include analog supply voltages of ±5V or 5V, and a digital supply of 5V. Packaged in a 28-SSOP surface-mount format, this device is suitable for applications in test and measurement, medical imaging, and high-speed communication systems operating within a temperature range of 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | True Bipolar |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±5V, 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 5M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 28-SSOP |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
