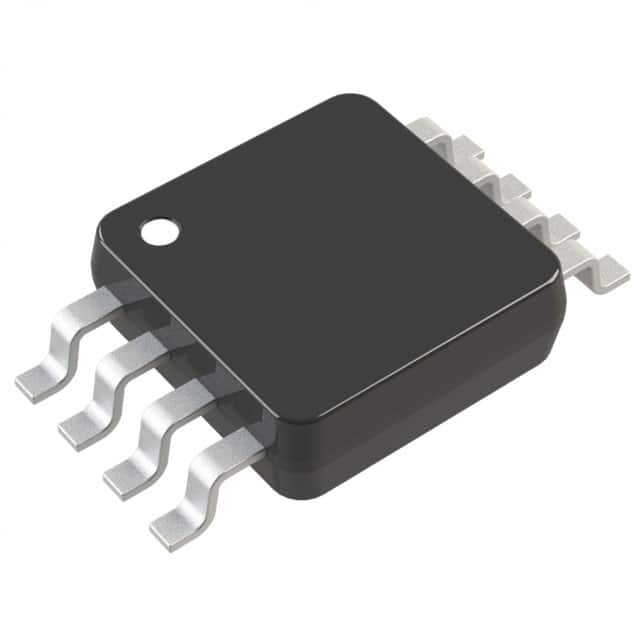

LTC1403HMSE#TRPBF
IC ADC 12BIT SAR 10MSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. LTC1403HMSE-TRPBF is a 12-bit Analog-to-Digital Converter (ADC) featuring a Successive Approximation Register (SAR) architecture. This component offers a single input with a sampling rate of up to 2.8 MSPS, making it suitable for high-speed data acquisition applications. The LTC1403HMSE-TRPBF supports both differential and single-ended input types and provides a 1:1 ratio for Sample-and-Hold (S/H) to ADC. Data is interfaced via SPI, and it includes options for both internal and external voltage references. Operating across an industrial temperature range of -40°C to 125°C, this device is housed in a 10-MSOP-EP (Exposed Pad) package, designed for surface mounting. The analog and digital supply voltage range is from 2.7V to 3.6V. This converter finds application in diverse sectors including industrial automation, medical instrumentation, and telecommunications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Sampling Rate (Per Second) | 2.8M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 10-MSOP-EP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
