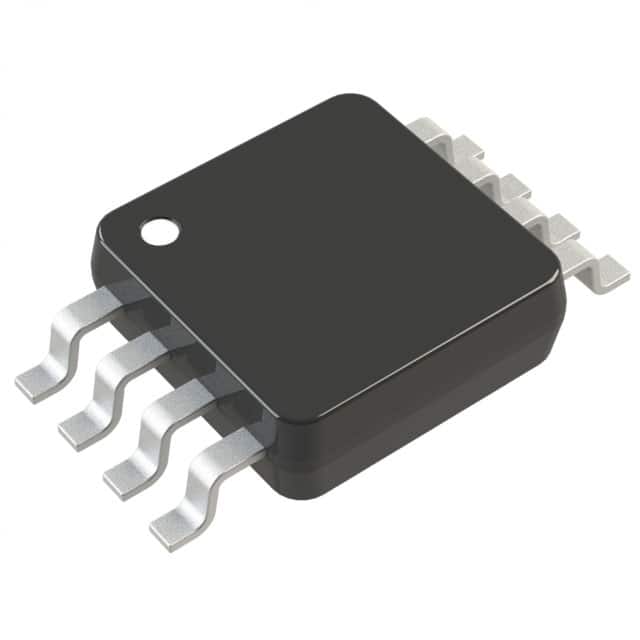

LTC1403ACMSE#TRPBF
IC ADC 14BIT SAR 10MSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. LTC1403ACMSE-TRPBF is a 14-bit successive approximation analog-to-digital converter (ADC). This component features a single input channel and a sampling rate of up to 2.8 MSPS, with a 1:1 Sample-and-Hold to ADC ratio. It supports both differential and single-ended input types and offers selectable internal or external voltage references. The data interface utilizes SPI, and the device operates within an analog and digital supply voltage range of 2.7V to 3.6V. Designed for surface mounting, it comes in a 10-MSOP-EP (Exposed Pad) package. This ADC is suitable for applications in industrial automation, medical instrumentation, and high-speed data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V |
| Sampling Rate (Per Second) | 2.8M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 10-MSOP-EP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
