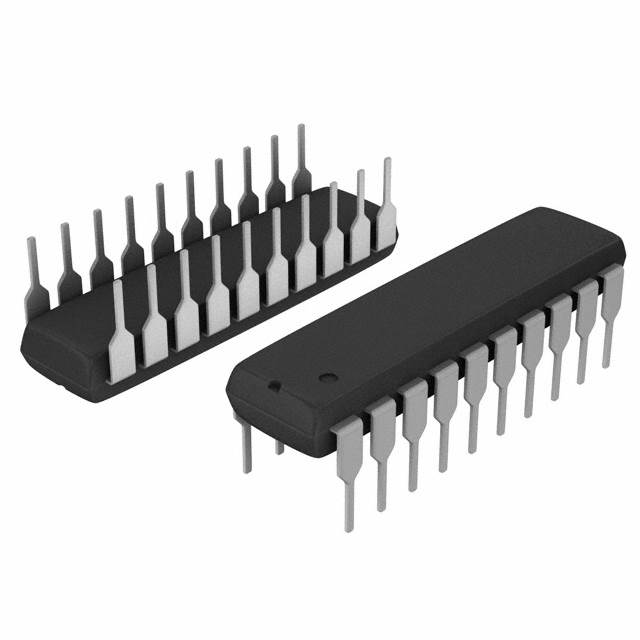

LTC1290DCJ
12-BIT SERIAL I/O ADC W/8 CH MUXManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. LTC1290DCJ is a 12-bit Analog to Digital Converter featuring a Serial Peripheral Interface (SPI) data output. This SAR (Successive Approximation Register) architecture ADC offers a flexible input configuration with a 4 or 8-channel multiplexer. The device supports both single-ended and differential input types and operates with analog and digital supply voltages of 5V or ±5V. With an external reference, the LTC1290DCJ provides a sampling rate of up to 50kSPS. Its 1:1 S/H to ADC ratio is suitable for various applications. The component is housed in a 20-CERDIP package and is designed for through-hole mounting. This ADC finds application in industrial control, data acquisition systems, and instrumentation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 20-CDIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V, ±5V |
| Voltage - Supply, Digital | 5V, ±5V |
| Sampling Rate (Per Second) | 50k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 4, 8 |
| Supplier Device Package | 20-CERDIP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
