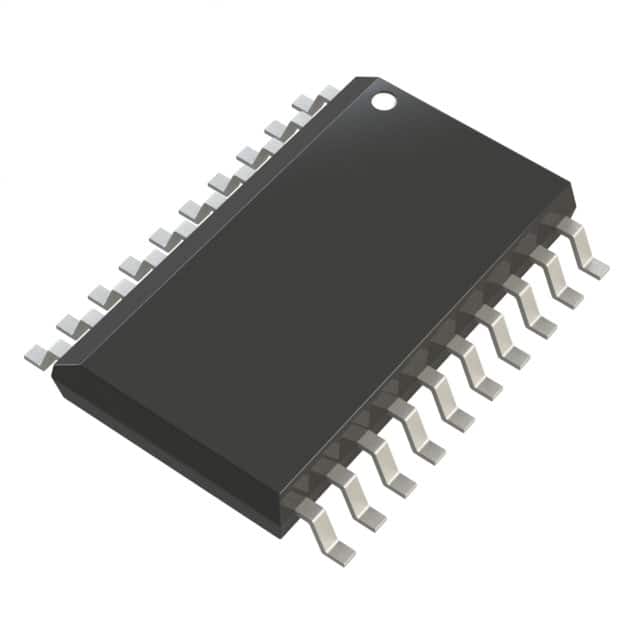

LTC1290CISW#TRPBF
IC DAS/ADC 12BIT 50K 20SOICManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. LTC1290CISW-TRPBF is a 12-bit successive approximation analog-to-digital converter (ADC). This component offers a sampling rate of 50kSPS and features a 4 or 8-channel multiplexer with sample-and-hold circuitry. It supports both differential and single-ended input types. The data interface is SPI, and it requires an external voltage reference. The LTC1290CISW-TRPBF operates with analog and digital supply voltages of 5V and ±5V, across an industrial temperature range of -40°C to 85°C. It is housed in a 20-SOIC package and supplied on tape and reel. This ADC is suitable for applications in data acquisition systems and general-purpose analog-to-digital conversion.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V, ±5V |
| Voltage - Supply, Digital | 5V, ±5V |
| Sampling Rate (Per Second) | 50k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 4, 8 |
| Supplier Device Package | 20-SO |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
