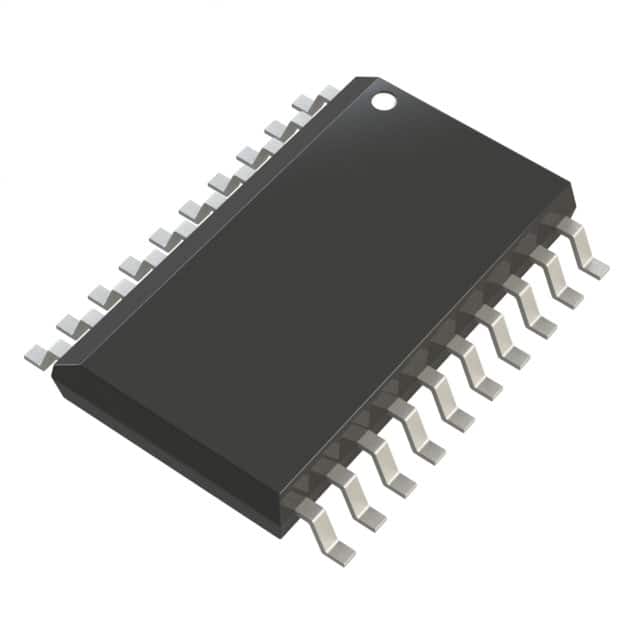

LTC1290BISW#TRPBF
IC DAS/ADC 12BIT 50K 20SOICManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. LTC1290BISW-TRPBF is a 12-bit, 50kSPS SAR ADC with 4 or 8 selectable input channels. This component features a 1:1 S/H to ADC ratio, external voltage reference, and SPI data interface. It supports both differential and single-ended input types. The LTC1290BISW-TRPBF is housed in a 20-SOIC (0.295" width) surface mount package and operates within a temperature range of -40°C to 85°C. Analog supply voltages can be 5V or ±5V, and digital supply voltages are also 5V or ±5V. This ADC is suitable for applications in industrial automation, data acquisition systems, and portable instrumentation. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V, ±5V |
| Voltage - Supply, Digital | 5V, ±5V |
| Sampling Rate (Per Second) | 50k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 4, 8 |
| Supplier Device Package | 20-SO |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
