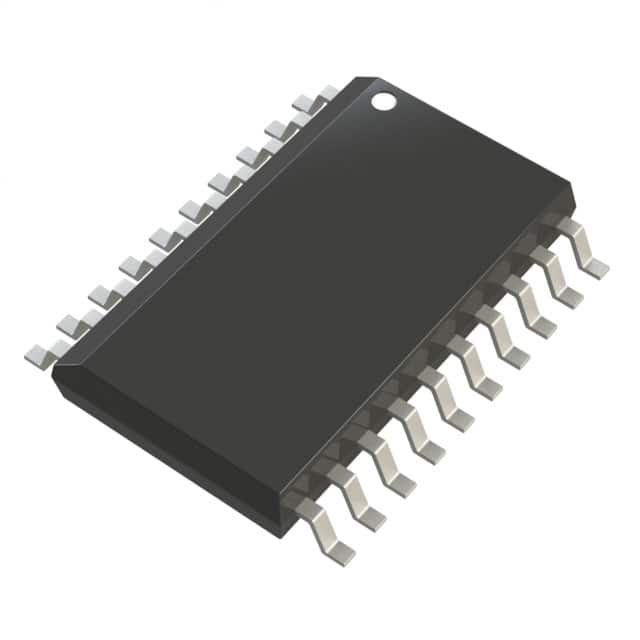

LTC1290BCSW#TRPBF
IC DAS/ADC 12BIT 50K 20SOICManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC1290BCSW-TRPBF is a 12-bit successive approximation (SAR) Analog to Digital Converter (ADC). This component features 4 or 8 selectable input channels, supporting both single-ended and differential configurations. The ADC operates with a sampling rate of 50kSPS and utilizes an SPI data interface for communication. It requires an external reference and offers a 1:1 ratio for Sample-and-Hold (S/H) to ADC. The LTC1290BCSW-TRPBF is housed in a 20-SOIC package, suitable for surface mount applications. Analog supply voltage can be 5V or ±5V, and digital supply voltage is also 5V or ±5V. This device is commonly employed in industrial automation, data acquisition systems, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V, ±5V |
| Voltage - Supply, Digital | 5V, ±5V |
| Sampling Rate (Per Second) | 50k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 4, 8 |
| Supplier Device Package | 20-SO |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
