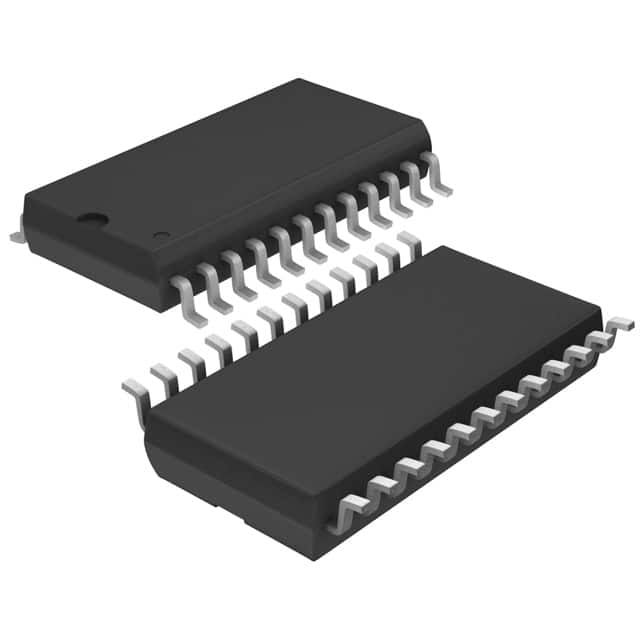

LTC1278-4CSW#TRPBF
IC ADC 12BIT SAR 24SOICManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC1278-4CSW-TRPBF is a 12-bit successive approximation (SAR) analog-to-digital converter (ADC) designed for high-performance data acquisition. This component features a single-ended input and a sample-and-hold (S/H) amplifier, offering a 1:1 ratio between S/H and ADC. It operates at a sampling rate of up to 400 kSPS and supports both external and internal reference types. The device is housed in a 24-SOIC package with a surface-mount design, suitable for operation within a 0°C to 70°C temperature range. Analog and digital supply voltages can be set at 5V, with analog supplies also accommodating a range from -2.45V to 5.25V. The LTC1278-4CSW-TRPBF is often utilized in applications requiring precise analog signal conversion, such as industrial control systems and medical instrumentation. The component is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V, -2.45V ~ 5.25 |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 400K |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 24-SOIC |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
