LTC1272-3ACSW#TRPBF
IC ADC 12BIT SAR 24SOICManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. presents the LTC1272-3ACSW-TRPBF, a 12-bit successive approximation register (SAR) analog-to-digital converter (ADC). This component features a single-ended input and an internal reference, operating with analog and digital supply voltages of 5V. With a sampling rate of 250kSPS, the LTC1272-3ACSW-TRPBF offers a 1:1 ratio for sample-and-hold to ADC functionality. It is housed in a 24-SOIC package with a 0.295" (7.50mm) width and is provided on tape and reel for surface mount applications. This ADC is suitable for use in various industrial and consumer electronics applications requiring precise analog signal conversion. The operating temperature range is 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |

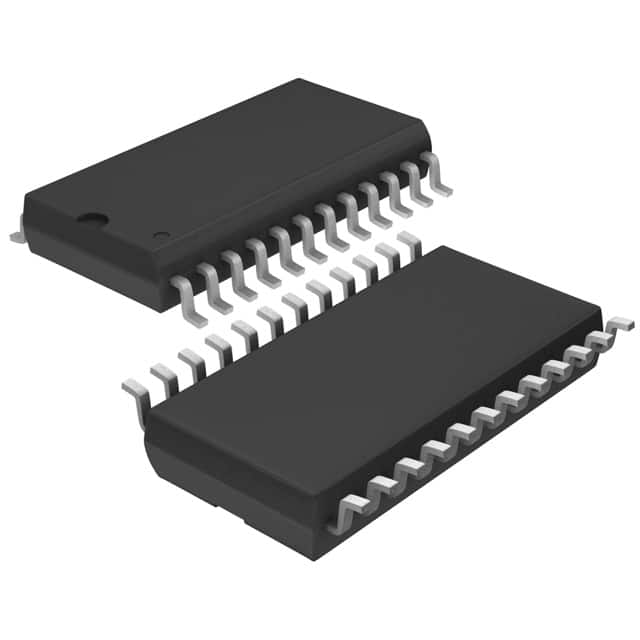

| Package / Case | 24-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 250k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 24-SOIC |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
