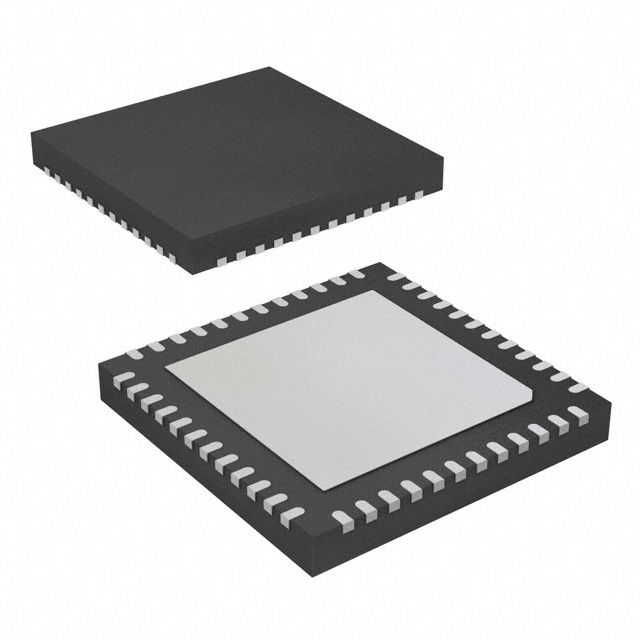

HMCAD1512
IC ADC 8BIT PIPELINED 48QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. HMCAD1512 is an 8-bit, 2-channel pipelined analog-to-digital converter (ADC). This component features a high sampling rate of up to 900 MSPS per channel, with interleaved operation for up to 1.8 GSPS. The HMCAD1512 offers two independent input channels with a configurable multiplexer and sample-and-hold (S/H) circuitry. It supports differential inputs for enhanced signal integrity. The data is output via a low-voltage differential signaling (LVDS) serial interface. This device is suitable for applications requiring high-speed signal acquisition, including high-frequency instrumentation, medical imaging, and advanced communications systems. The HMCAD1512 is supplied in a 48-QFN (7x7) package for surface mounting and operates within an industrial temperature range of -40°C to 85°C. The analog and digital supply voltage range is 1.7V to 2V.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Features | Interleavable, Simultaneous Sampling |
| Packaging | Strip |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Configuration | MUX-S/H-ADC |
| Data Interface | LVDS - Serial |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 2V |
| Voltage - Supply, Digital | 1.7V ~ 2V |
| Sampling Rate (Per Second) | 450M, 900M |
| Input Type | Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 48-QFN (7x7) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
