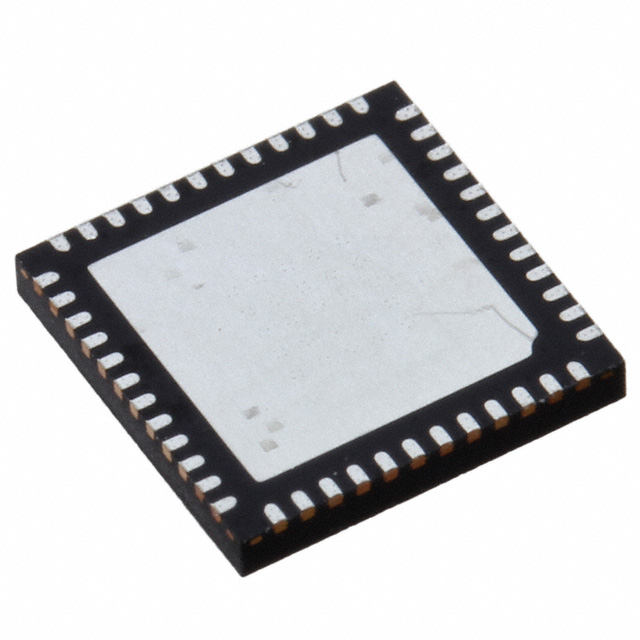

HMCAD1510
IC ADC 8BIT PIPELINED 48QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. HMCAD1510 is an 8-bit pipelined analog-to-digital converter featuring 4 input channels and simultaneous sampling capabilities. This component utilizes a pipelined architecture with a sample-and-hold (S/H) stage integrated with the ADC. It offers selectable sampling rates of 125 MSPS, 250 MSPS, and 500 MSPS. The device supports differential input types and provides a serial LVDS data interface. Operating with analog and digital supply voltages between 1.7V and 2V, the HMCAD1510 is housed in a 48-VFQFN exposed pad package. It is suitable for applications in high-speed data acquisition, instrumentation, and medical imaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Strip |
| Package / Case | 48-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Serial |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 2V |
| Voltage - Supply, Digital | 1.7V ~ 2V |
| Sampling Rate (Per Second) | 125M, 250M, 500M |
| Input Type | Differential |
| Number of Inputs | 4 |
| Supplier Device Package | 48-QFN (7x7) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 4 |
