HMCAD1100

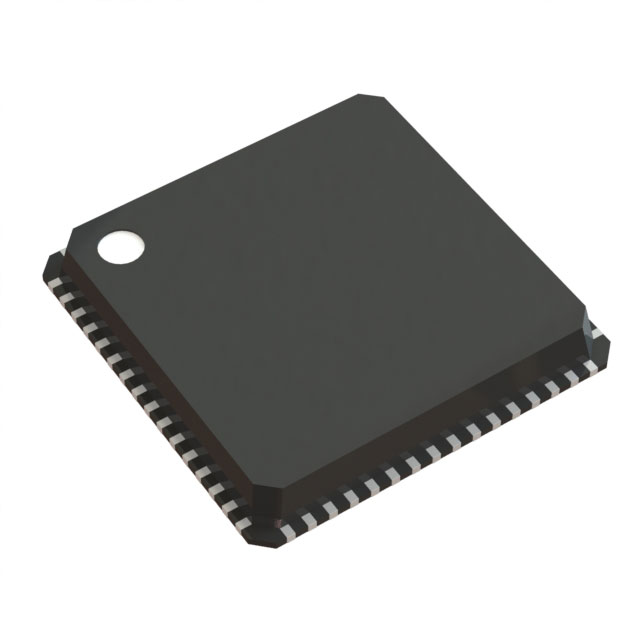

IC ADC 12, 13BIT PIPELINED 64QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. HMCAD1100 is an 8-channel, 12/13-bit pipelined analog-to-digital converter. This device features simultaneous sampling with a configurable input type supporting differential signals. The architecture includes a Sample-and-Hold (S/H) circuit integrated with the ADC, offering a 1:1 S/H to ADC ratio. The data interface utilizes LVDS for serial output. With a sampling rate selectable up to 50MSPS per channel, the HMCAD1100 is suitable for applications requiring high-speed signal acquisition. It operates with analog and digital supply voltages between 1.7V and 2V. The component is supplied in a 64-lead, 9x9mm SMT package (64-VFQFN Exposed Pad) for surface mounting. This converter finds utility in demanding applications across telecommunications, medical imaging, and test and measurement equipment.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Bulk |
| Package / Case | 64-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12, 13 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Serial |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 2V |
| Voltage - Supply, Digital | 1.7V ~ 2V |
| Sampling Rate (Per Second) | 20M, 40M, 50M |
| Input Type | Differential |
| Number of Inputs | 8 |
| Supplier Device Package | 64-SMT (9x9) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 8 |
