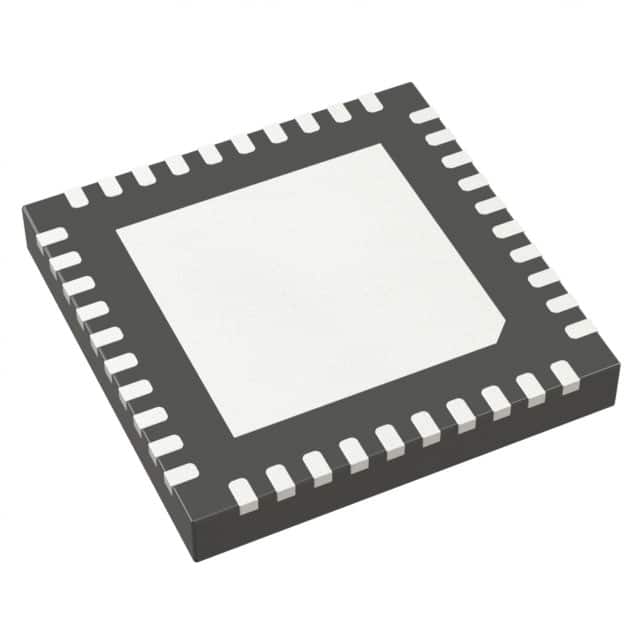

ADAS3022SCPZ-EP
IC ADC 16BIT SAR 40LFCSPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
16 Bit Analog to Digital Converter 8 Input 1 SAR 40-LFCSP-VQ (6x6)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 40-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | MUX-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -55°C ~ 105°C |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Sampling Rate (Per Second) | 1M |
| Input Type | Single Ended |
| Number of Inputs | 8 |
| Supplier Device Package | 40-LFCSP-VQ (6x6) |
| Architecture | SAR |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
Request a Quote
