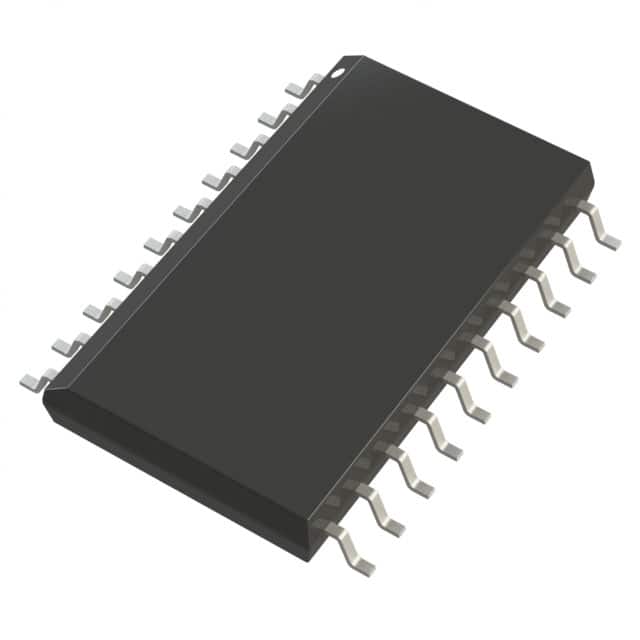

AD977CRZRL
IC ADC 16BIT SAR 20SOICManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD977CRZRL is a 16-bit successive approximation analog-to-digital converter (ADC). This single-channel device features a 100 kSPS sampling rate and supports both external and internal voltage references. The AD977CRZRL offers a single-ended input and communicates via an SPI data interface. It is provided in a 20-SOIC package suitable for surface mounting. Typical applications include data acquisition systems, instrumentation, and industrial control. The operating temperature range is -40°C to 85°C, with analog and digital supply voltages of 5V. This component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 100k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 20-SOIC |
| Architecture | SAR |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
