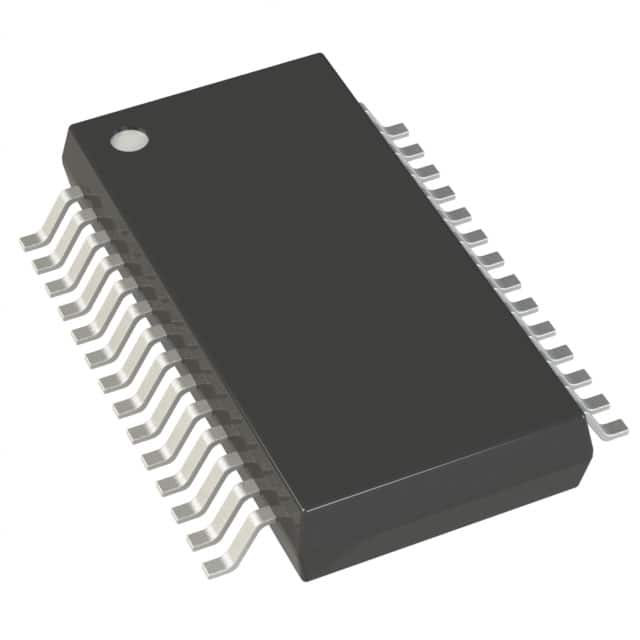

AD977CRSZ
IC ADC 16BIT SAR 28SSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD977CRSZ is a 16-bit Analog-to-Digital Converter (ADC) featuring a Successive Approximation Register (SAR) architecture. This surface-mount component, housed in a 28-SSOP package, offers a single-ended input and a sampling rate of up to 100kSPS. The AD977CRSZ supports both external and internal voltage references and utilizes an SPI data interface for seamless integration. It operates across an industrial temperature range of -40°C to 85°C with analog and digital supply voltages of 5V. This device is commonly employed in applications within the industrial, medical, and instrumentation sectors requiring precise analog signal conversion.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 28-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 100k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 28-SSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
