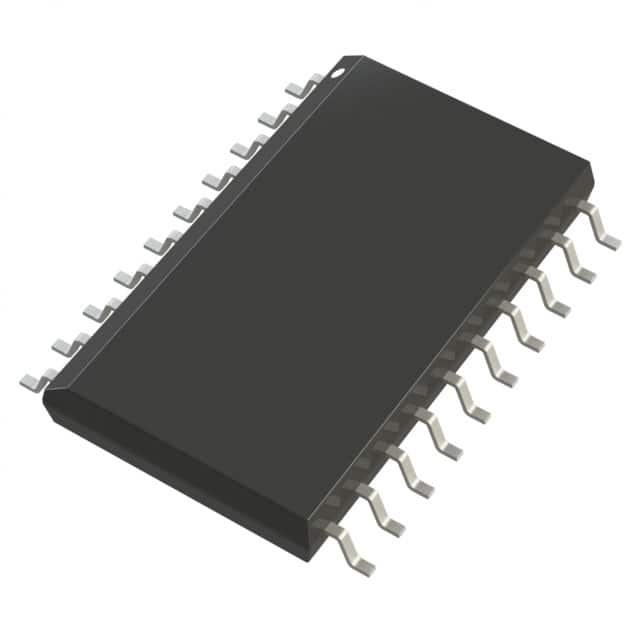

AD977ARZ-REEL
IC ADC 16BIT SAR 20SOICManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD977ARZ-REEL is a 16-bit, single-channel Analog to Digital Converter (ADC) utilizing a Successive Approximation Register (SAR) architecture. This component features a single-ended input and offers both internal and external reference options. The device supports a sampling rate of up to 100kSPS and communicates via an SPI data interface. Packaged in a 20-SOIC (0.295", 7.50mm Width) format for surface mounting, it operates within a temperature range of -40°C to 85°C. Analog and digital supply voltages are both 5V. This ADC is suitable for applications in data acquisition systems, industrial instrumentation, and medical electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 100k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 20-SOIC |
| Architecture | SAR |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
