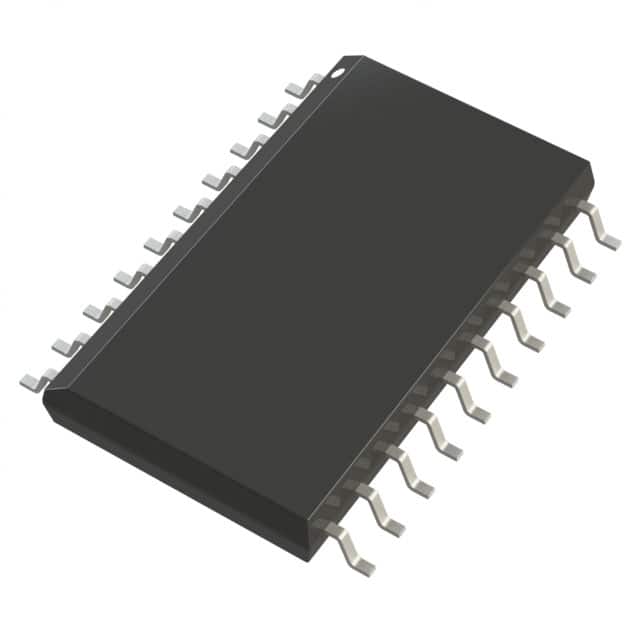

AD977ARZ
IC ADC 16BIT SAR 20SOICManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD977ARZ is a 16-bit, successive approximation analog-to-digital converter (ADC). This component features a single-ended input and a SAR architecture. The AD977ARZ offers an SPI data interface and supports both external and internal reference types. Its sampling rate reaches up to 100k samples per second. The device operates with analog and digital supply voltages of 5V and is housed in a 20-SOIC package suitable for surface mounting. This ADC is utilized in applications requiring precise analog signal conversion, including industrial automation and instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 100k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 20-SOIC |
| Architecture | SAR |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
