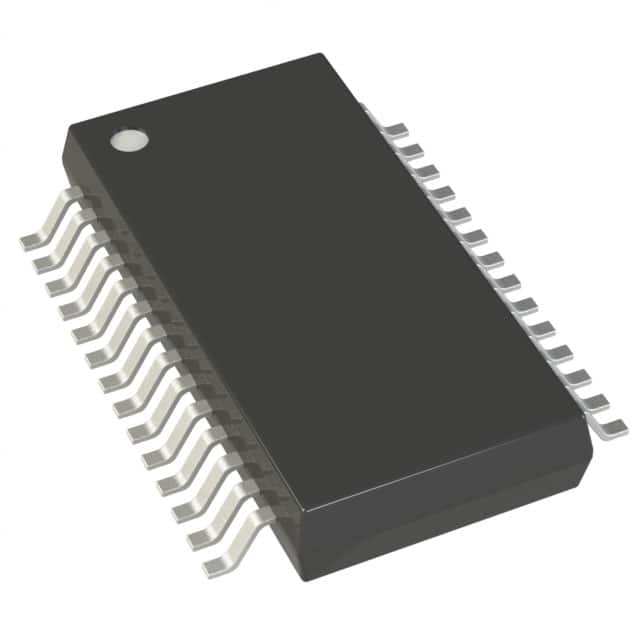

AD977ARSZ
IC ADC 16BIT SAR 28SSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD977ARSZ is a 16-bit Analog-to-Digital Converter (ADC) with a Successive Approximation Register (SAR) architecture. This component features a single-ended input and an SPI data interface, offering a sampling rate of up to 100kSPS. The AD977ARSZ supports both external and internal voltage references and operates with analog and digital supply voltages of 5V. Packaged in a 28-SSOP (0.209", 5.30mm Width) for surface mounting, it is suitable for applications in industrial automation, data acquisition systems, and medical instrumentation. The device is specified for operation over an extended temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 28-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 100k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 28-SSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
Request a Quote
