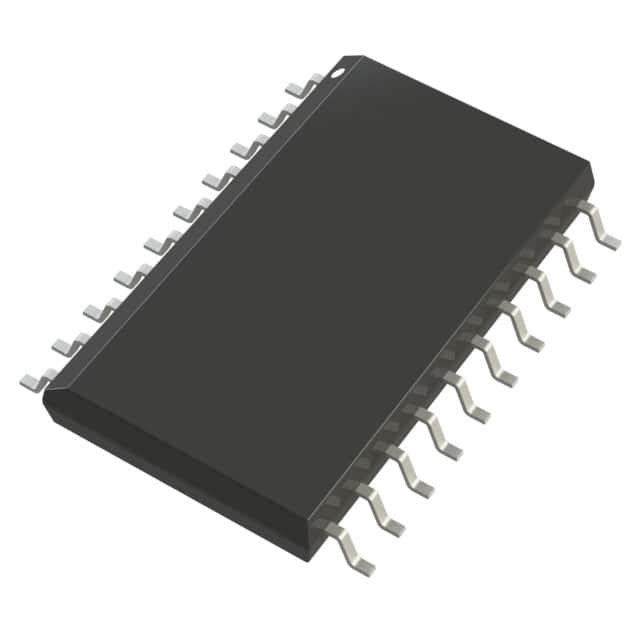

AD977ACR
IC ADC 16BIT SAR 20SOICManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD977ACR is a 16-bit Analog-to-Digital Converter (ADC) featuring a successive approximation register (SAR) architecture. This component offers a single-ended input and supports both external and internal voltage references. The AD977ACR provides a sampling rate of up to 200 kSPS, with a digital interface compatible with SPI. It is housed in a 20-SOIC package with surface mount capability. Operating across an industrial temperature range of -40°C to 85°C, this device is suitable for applications in industrial automation, data acquisition systems, and medical instrumentation. The device operates with analog and digital supply voltages of 5V.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 200k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 20-SOIC |
| Architecture | SAR |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
