AD976CNZ
IC ADC 16BIT SAR 28DIPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More

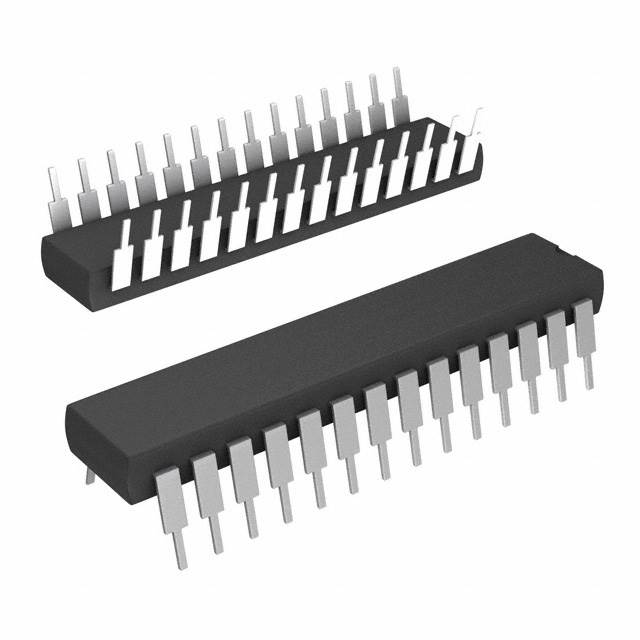

Analog Devices Inc. AD976CNZ is a 16-bit successive approximation analog-to-digital converter (ADC) housed in a 28-pin DIP package. This component features a single-ended input and a 1:1 ratio for sample-and-hold to ADC conversion. The AD976CNZ offers both external and internal reference options and operates with analog and digital supply voltages of 5V. Its parallel data interface facilitates integration into various digital systems. With a sampling rate of up to 100 kSPS, this ADC finds application in industrial control, data acquisition systems, and instrumentation. The through-hole mounting type ensures robust connectivity in demanding environments.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 28-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 100k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 28-PDIP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
