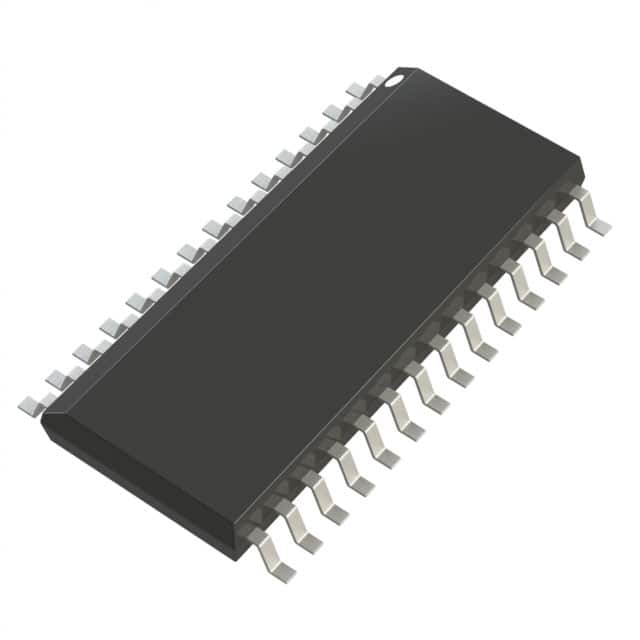

AD976BRZRL
IC ADC 16BIT SAR 28SOICManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD976BRZRL is a 16-bit Analog-to-Digital Converter (ADC) utilizing a Successive Approximation Register (SAR) architecture. This device features a single-ended input and a 1:1 Sample-and-Hold to ADC ratio. The AD976BRZRL offers a parallel data interface and a sampling rate of 100kSPS. It is available in a 28-SOIC (0.295", 7.50mm Width) surface mount package, supplied on tape and reel. Both analog and digital supply voltages are 5V, with support for external and internal reference types. This component finds application in industrial automation and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 100k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 28-SOIC |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
