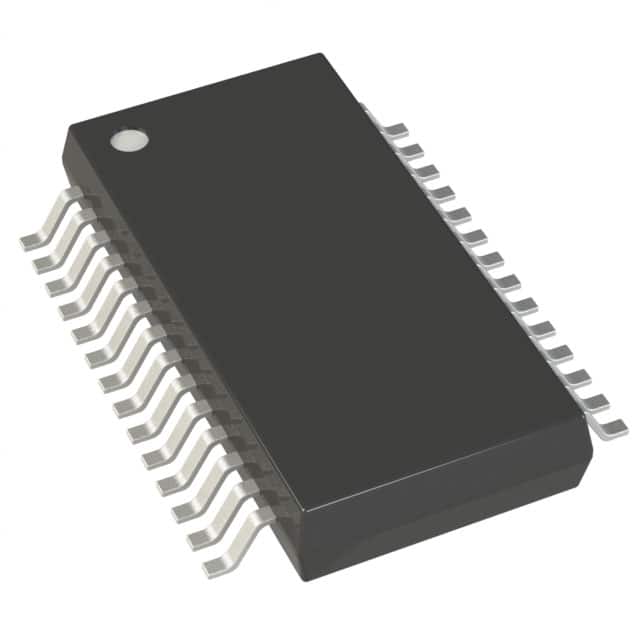

AD976BRSZ
IC ADC 16BIT SAR 28SSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD976BRSZ is a 16-bit, 100kSPS Analog-to-Digital Converter (ADC) featuring a successive approximation register (SAR) architecture. This component is configured as a Sample-and-Hold (S/H) ADC with a single-ended input. The AD976BRSZ offers a parallel data interface for efficient data transfer. It supports both external and internal reference types and operates with analog and digital supply voltages of 5V. Packaged in a 28-SSOP (0.209", 5.30mm Width) for surface mounting, this device is suitable for applications in industrial automation and medical instrumentation. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 28-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 100k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 28-SSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
