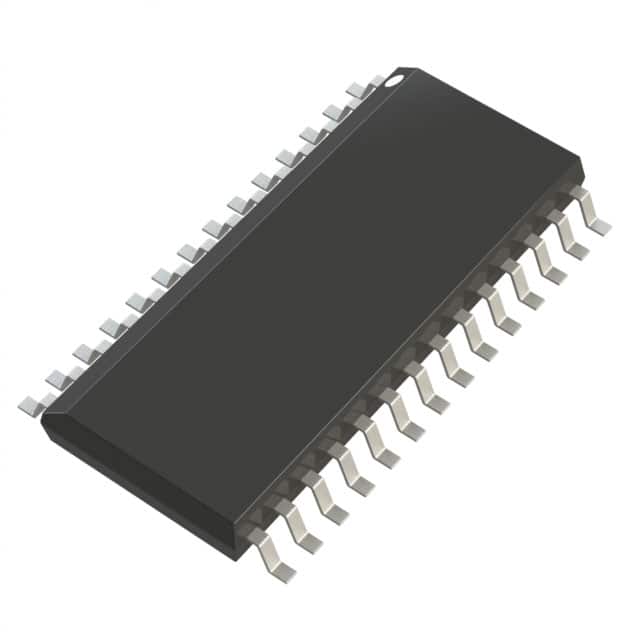

AD976ABRZRL
IC ADC 16BIT SAR 28SOICManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD976ABRZRL is a 16-bit, single-channel, successive approximation analog-to-digital converter (ADC). This SAR ADC features a sampling rate of up to 200 kSPS, offering a robust solution for data acquisition applications. The device supports both external and internal voltage references and operates with analog and digital supply voltages of 5V. It is housed in a 28-SOIC (0.295", 7.50mm Width) surface-mount package, supplied on tape and reel (TR). The AD976ABRZRL is suitable for use in industrial automation, test and measurement equipment, and medical instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 200k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 28-SOIC |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
