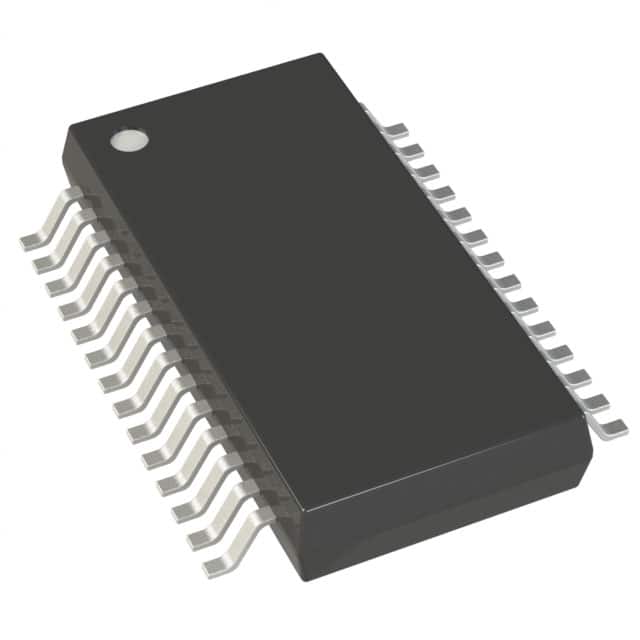

AD976ABRS
IC ADC 16BIT SAR 28SSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD976ABRS is a 16-bit, successive approximation analog-to-digital converter (ADC). This component features a single-ended input and a 1:1 sample-and-hold to ADC ratio, operating with analog and digital supply voltages of 5V. The AD976ABRS offers a sampling rate of up to 200 kSPS and supports both external and internal reference types. It is housed in a 28-lead SSOP package, suitable for surface-mount applications. This ADC is commonly utilized in data acquisition systems, industrial control, and instrumentation where precise analog-to-digital conversion is required.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 28-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 200k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 28-SSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
