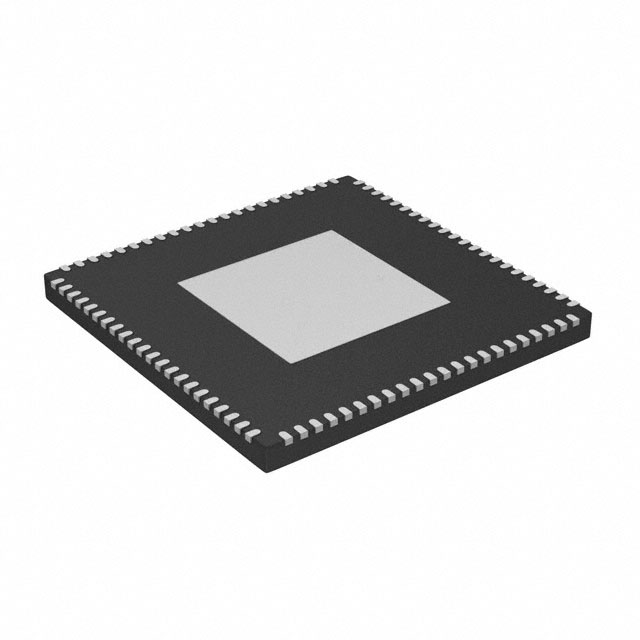

AD9691BCPZRL7-1250
IC ADC 14BIT PIPELINED 88LFCSPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. presents the AD9691BCPZRL7-1250, a 14-bit pipelined Analog to Digital Converter. This component features two differential inputs and offers simultaneous sampling capabilities. The device utilizes a JESD204B data interface for efficient data transfer. Its pipelined architecture and S/H-ADC configuration enable high-speed operation with a sampling rate of up to 1.25 GSPS. The AD9691BCPZRL7-1250 is housed in an 88-LFCSP-VQ (12x12) package, suitable for surface mounting. Operating across an extended temperature range of -40°C to 85°C, it supports analog and digital supply voltages of 1.22V to 1.28V and 2.44V to 2.56V. This converter is commonly employed in high-performance test and measurement equipment, communications infrastructure, and radar systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 88-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | JESD204B |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.22V ~ 1.28V, 2.44V ~ 2.56V |
| Voltage - Supply, Digital | 1.22V ~ 1.28V |
| Sampling Rate (Per Second) | 1.25G |
| Input Type | Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 88-LFCSP-VQ (12x12) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
