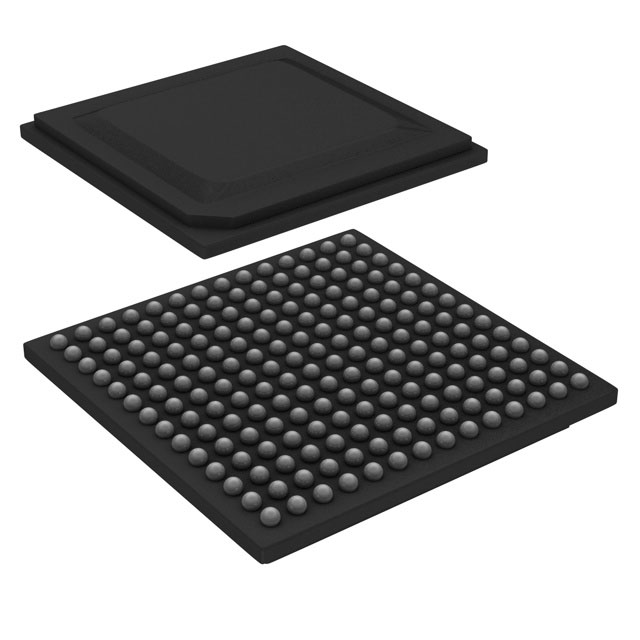

AD9689BBPZ-2000
IC ADC 14BIT PIPELINED 196BGAManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
14 Bit Analog to Digital Converter 2 Input 2 Pipelined 196-BGA-ED (12x12)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 196-LFBGA Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | JESD204B |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 0.95V ~ 1V, 1.85V ~ 1.95V, 2.44V ~ 2.56V |
| Voltage - Supply, Digital | 0.95V ~ 1V, 1.85V ~ 1.95V |
| Sampling Rate (Per Second) | 2G |
| Input Type | Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 196-BGA-ED (12x12) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
