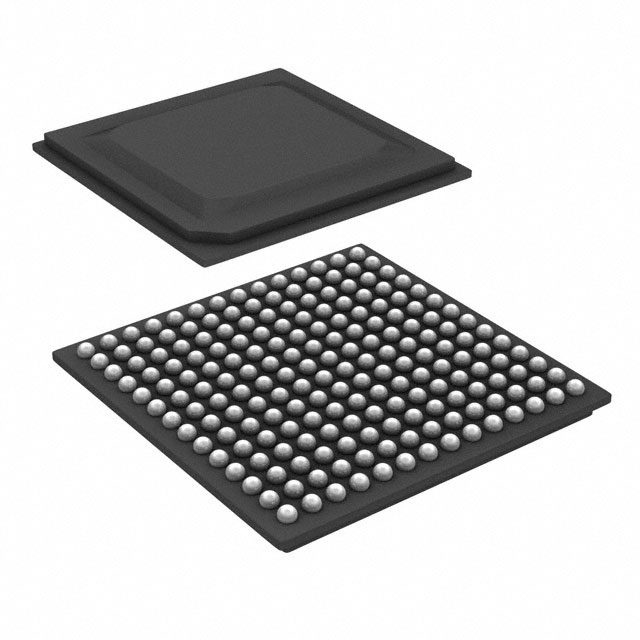

AD9684BBPZ-500
IC ADC 14BIT PIPELINED 196BGAManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. AD9684BBPZ-500 is a 14-bit, 500 MSPS pipelined analog-to-digital converter. This component features two differential inputs and a 1:1 S/H-to-ADC ratio. The digital output is delivered via a parallel LVDS interface. Designed for surface mounting, it is provided in a 196-BGA-ED (12x12) package with an exposed pad. The AD9684BBPZ-500 supports both external and internal voltage references. Analog supply voltage options include 1.25V and 2.5V, with digital supply voltage ranging from 1.22V to 1.28V. This ADC is suitable for applications in communications, test and measurement, and defense electronics. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 196-LFBGA Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.25V, 2.5V |
| Voltage - Supply, Digital | 1.22V ~ 1.28V |
| Sampling Rate (Per Second) | 500M |
| Input Type | Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 196-BGA-ED (12x12) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
