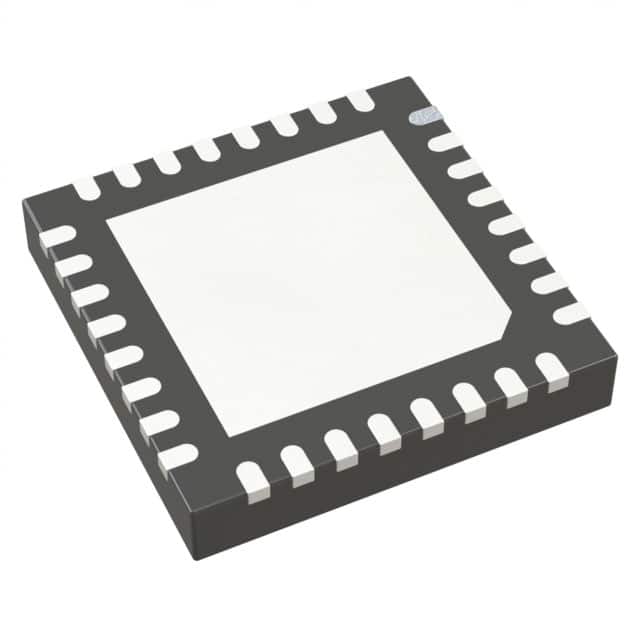

AD9683BCPZ-250
IC ADC 14BIT PIPELINED 32LFCSPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
14 Bit Analog to Digital Converter 1 Input 1 Pipelined 32-LFCSP (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 32-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | ADC |
| Data Interface | JESD204B |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 250M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 32-LFCSP (5x5) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
