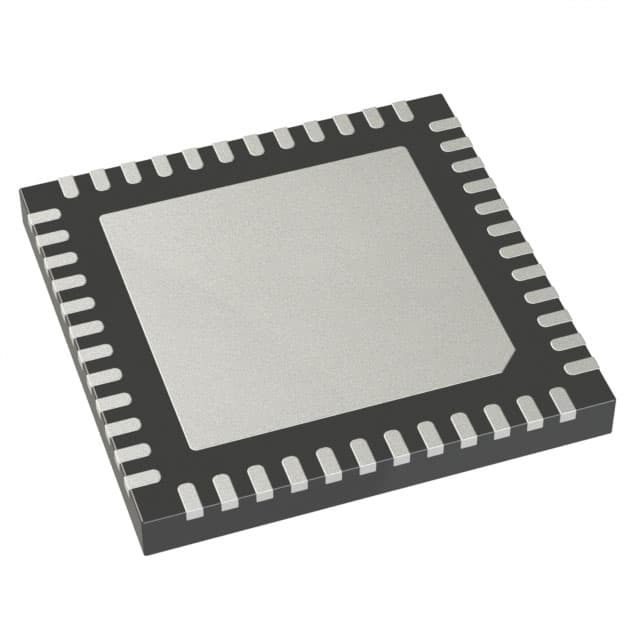

AD9633BCPZRL7-125
IC ADC 12BIT PIPELINED 48LFCSPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD9633BCPZRL7-125 is a 12-bit, 4-channel pipelined Analog-to-Digital Converter (ADC) with a maximum sampling rate of 125 MSPS per channel. This device features simultaneous sampling capabilities and offers a differential input type. The architecture utilizes a sample-and-hold (S/H) followed by a pipelined ADC. Data is output via a serial LVDS interface. The AD9633BCPZRL7-125 supports both external and internal voltage references. This component is supplied in a 48-LFCSP (7x7) package, suitable for surface mounting and delivered on tape and reel. It operates across an industrial temperature range of -40°C to 85°C with analog and digital supply voltages ranging from 1.7V to 1.9V. This ADC is commonly employed in test and measurement equipment, high-speed data acquisition systems, and medical imaging applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Serial |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 125M |
| Input Type | Differential |
| Number of Inputs | 4 |
| Supplier Device Package | 48-LFCSP (7x7) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 4 |
