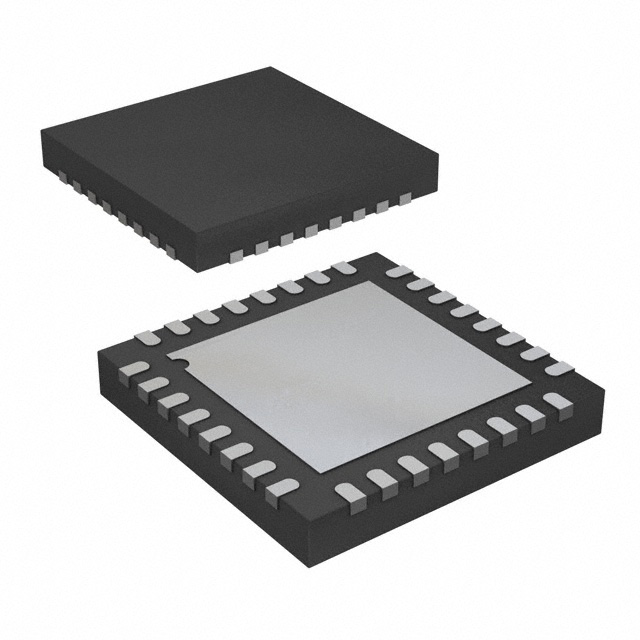

AD9629BCPZRL7-20
IC ADC 12BIT PIPELINED 32LFCSPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD9629BCPZRL7-20 is a 12-bit pipelined analog-to-digital converter (ADC) featuring a single input channel. This component utilizes a pipelined architecture and supports both single-ended and differential input types, offering flexibility in signal acquisition. The data interface is parallel, facilitating high-speed data transfer. With a sampling rate of up to 20 MSPS, it is suitable for applications requiring moderate speed and precision. The AD9629BCPZRL7-20 operates within an analog supply voltage range of 1.7V to 1.9V and a digital supply voltage range of 1.7V to 3.6V. It is supplied in a space-saving 32-LFCSP-VQ (5x5) package, designed for surface mounting. This ADC finds utility in various industries including industrial automation, medical instrumentation, and communications systems. It is provided in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 3.6V |
| Sampling Rate (Per Second) | 20M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 32-LFCSP-VQ (5x5) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
