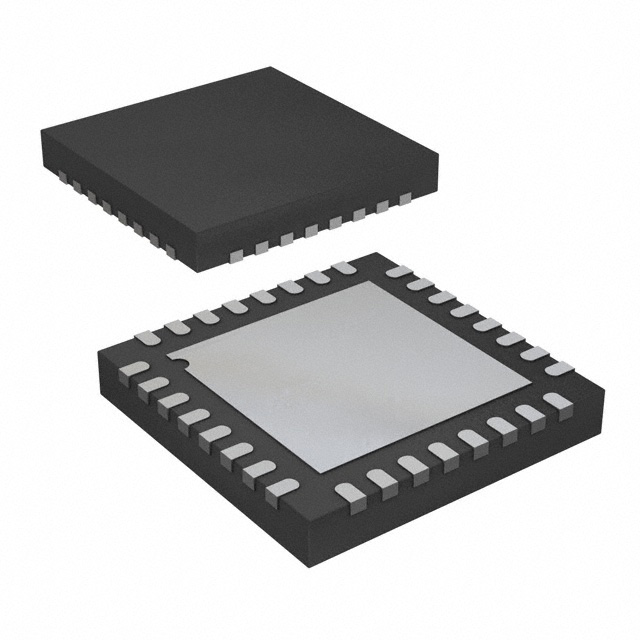

AD9609BCPZRL7-80
IC ADC 10BIT PIPELINED 32LFCSPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD9609BCPZRL7-80 is a 10-bit, 80 MSPS analog-to-digital converter featuring a pipelined architecture. This device offers a single-ended or differential input with a 1:1 S/H-to-ADC ratio. The AD9609BCPZRL7-80 utilizes a 32-lead LFCSP_VQ (5x5) package for surface mounting and operates with analog and digital supply voltages between 1.7V and 1.9V. It supports both external and internal voltage references. This component is suitable for applications in instrumentation, medical imaging, and telecommunications. The part is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 80M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 32-LFCSP-VQ (5x5) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
