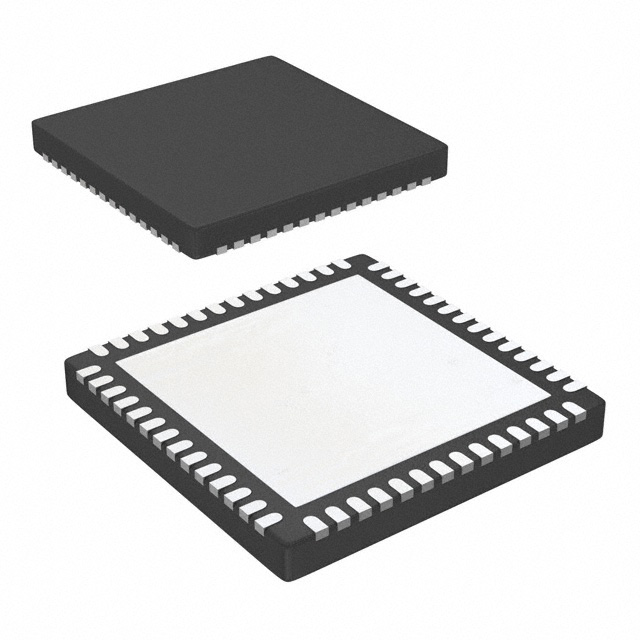

AD9601BCPZ-250
IC ADC 10BIT PIPELINED 56LFCSPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. AD9601BCPZ-250 is a 10-bit, 250 MSPS pipelined Analog-to-Digital Converter (ADC). This device features a single input channel with a differential input type and an internal reference. The AD9601BCPZ-250 utilizes a Sample-and-Hold (S/H) amplifier followed by a pipelined ADC architecture. Data is output via a parallel LVDS interface. The component is supplied in a 56-LFCSP-VQ (8x8) package, suitable for surface mounting. It operates with analog and digital supply voltages between 1.7V and 1.9V and is rated for an operating temperature range of -40°C to 85°C. This ADC is commonly found in applications such as digital signal processing, telecommunications infrastructure, and medical imaging systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 56-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 250M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 56-LFCSP-VQ (8x8) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
