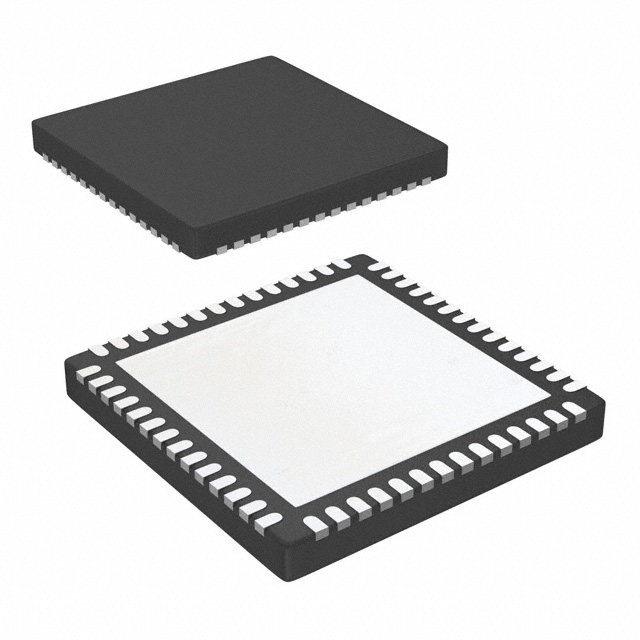

AD9434BCPZRL7-500
AD9434 - 12-BIT, 1.8 V ANALOG-TOManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD9434BCPZRL7-500 is a 12-bit pipelined analog-to-digital converter (ADC) designed for high-speed data acquisition. This component features a single differential input and offers a sampling rate of up to 500 MSPS. The AD9434BCPZRL7-500 utilizes an LVDS parallel data interface for efficient data transfer. Key features include an internal oscillator and support for both external and internal voltage references. Operating within a supply voltage range of 1.75V to 1.9V for both analog and digital supplies, it is specified for an operating temperature range of -40°C to 85°C. The device is housed in a 56-LFCSP (8x8) package, suitable for surface-mount applications. This ADC finds application in various industries including communications, test and measurement, and medical imaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Internal Oscillator |
| Packaging | Bulk |
| Package / Case | 56-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | ADC |
| Data Interface | LVDS - Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.75V ~ 1.9V |
| Voltage - Supply, Digital | 1.75V ~ 1.9V |
| Sampling Rate (Per Second) | 500M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 56-LFCSP (8x8) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
