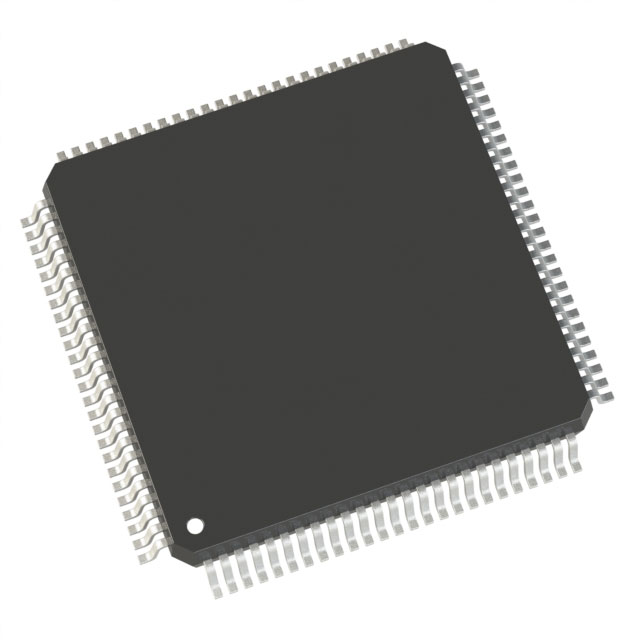

AD9430BSVZ-170
IC ADC 12BIT PIPELINED 100TQFPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD9430BSVZ-170 is a 12-bit pipelined analog-to-digital converter (ADC) designed for high-performance applications. This component features a single-ended analog input and a differential output interface utilizing LVDS technology for high-speed data transfer. With a maximum sampling rate of 170 MSPS, the AD9430BSVZ-170 is well-suited for demanding signal processing tasks. It operates from analog and digital supply voltages ranging from 3.1V to 3.6V. The device is housed in a 100-lead TQFP Exposed Pad package, facilitating surface mounting. This ADC is commonly employed in aerospace and defense, industrial instrumentation, and test and measurement equipment where precise analog signal digitization is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 100-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Parallel, Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 3.1V ~ 3.6V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Sampling Rate (Per Second) | 170M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 100-TQFP-EP (14x14) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
Request a Quote
