AD9289BBC

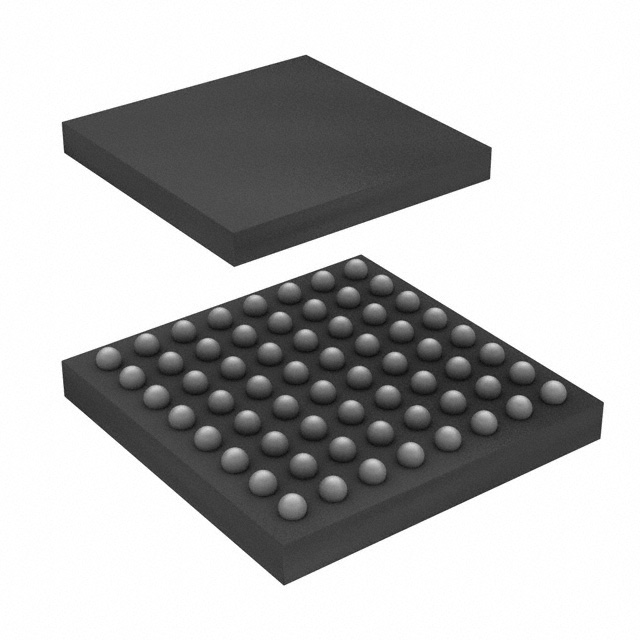

IC ADC 8BIT PIPELINED 64CSPBGAManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. AD9289BBC is an 8-bit, 4-channel pipelined analog-to-digital converter. This component features simultaneous sampling and a differential input type, enabling precise capture of multiple analog signals concurrently. The AD9289BBC offers a sampling rate of up to 65 MSPS per channel, supported by a flexible 2.7V to 3.3V analog and digital supply voltage. Data is output via a serial LVDS interface. This device is packaged in a 64-lead CSPBGA (8x8) for surface mounting and is suitable for applications in telecommunications infrastructure, medical imaging, and test and measurement equipment. It operates across a temperature range of -40°C to 85°C and supports both external and internal reference types.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tray |
| Package / Case | 64-LFBGA, CSPBGA |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Serial |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.3V |
| Voltage - Supply, Digital | 2.7V ~ 3.3V |
| Sampling Rate (Per Second) | 65M |
| Input Type | Differential |
| Number of Inputs | 4 |
| Supplier Device Package | 64-CSPBGA (8x8) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 4 |
