AD9271BSVZRL-25
IC ADC OCT 12BIT 25MSPS 100-TQFPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. AD9271BSVZRL-25 is a 12-bit octal Analog-to-Digital Converter (ADC) operating at a 25 MSPS sampling rate. This pipelined architecture device features 8 input channels, supporting both differential and single-ended inputs, with simultaneous sampling capabilities. The AD9271BSVZRL-25 integrates a Low Noise Amplifier (LNA), Variable Gain Amplifier (VGA), and Anti-Aliasing Filter (AAF) prior to the ADC core. Its data interface is LVDS serial, and it offers both external and internal reference types. The component is housed in a 100-TQFP-EP (14x14) surface-mount package. Typical applications include medical imaging, test and measurement equipment, and high-speed data acquisition systems. The analog and digital supply voltages are both 1.8V.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Bulk |

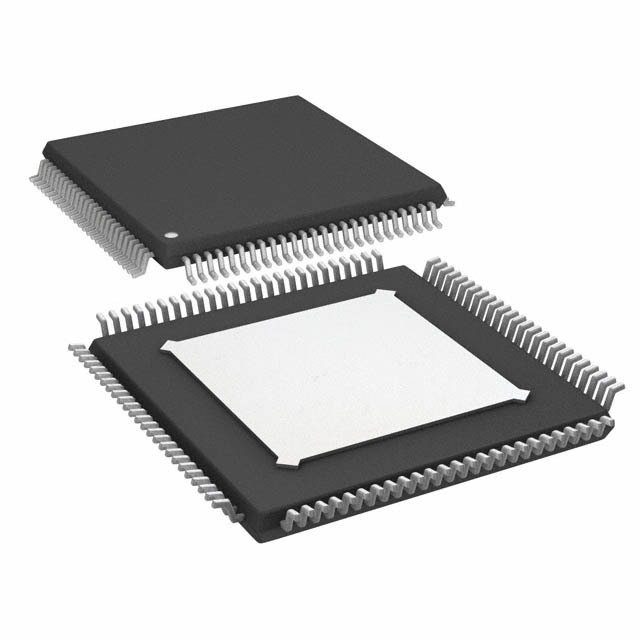

| Package / Case | 100-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | LNA-VGA-AAF-ADC |
| Data Interface | LVDS - Serial |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.8V |
| Voltage - Supply, Digital | 1.8V |
| Sampling Rate (Per Second) | 25M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 8 |
| Supplier Device Package | 100-TQFP-EP (14x14) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
