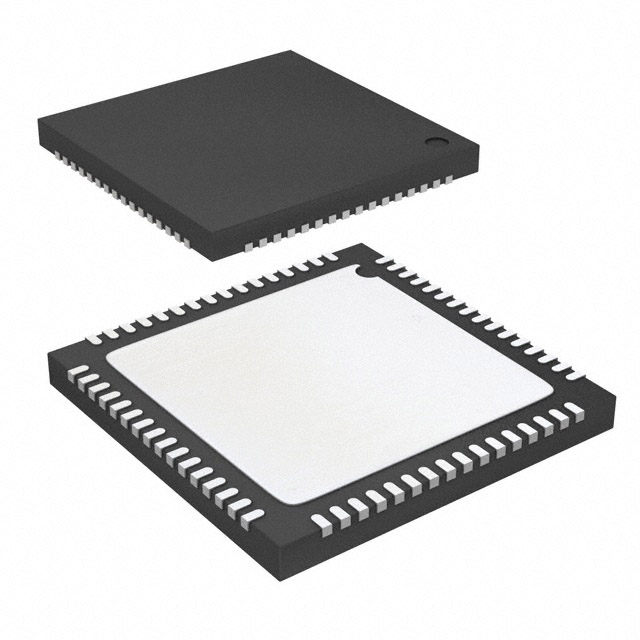

AD9269BCPZRL7-65
IC ADC 16BIT PIPELINED 64LFCSPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD9269BCPZRL7-65 is a 16-bit, 65 MSPS dual-channel analog-to-digital converter (ADC). This pipelined architecture ADC features simultaneous sampling, ideal for high-speed data acquisition applications. The device offers flexible input configurations with differential inputs and supports both external and internal references. Its 64-LFCSP-VQ (9x9) package facilitates surface mounting and is supplied on tape and reel (TR). Operating across a temperature range of -40°C to 85°C, the AD9269BCPZRL7-65 is suitable for demanding environments in industries such as aerospace and defense, medical imaging, and communications infrastructure. Analog supply voltage ranges from 1.7V to 1.9V, with digital supply voltage from 1.7V to 3.6V. The parallel data interface ensures efficient data transfer.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 3.6V |
| Sampling Rate (Per Second) | 65M |
| Input Type | Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 64-LFCSP-VQ (9x9) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
