AD9253BCPZRL7-125

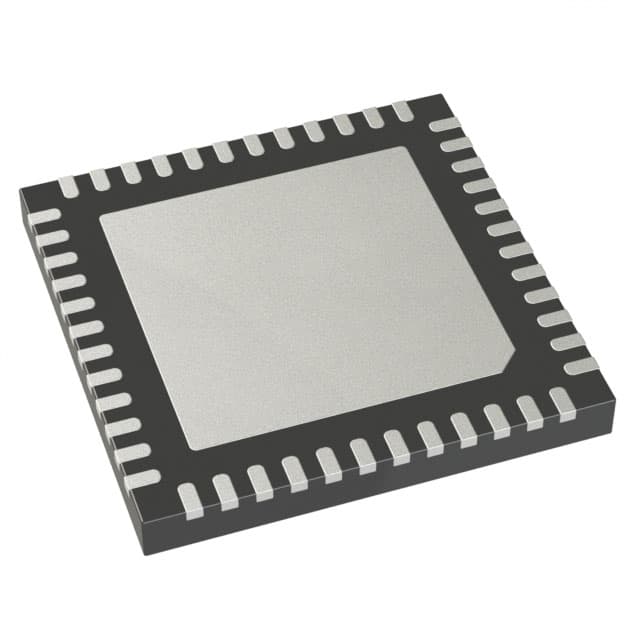

IC ADC 14BIT PIPELINED 48LFCSPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD9253BCPZRL7-125 is a 14-bit, 125 MSPS analog-to-digital converter (ADC) featuring a pipelined architecture. This device offers four simultaneous sampling input channels, each with differential input capability. The AD9253BCPZRL7-125 utilizes an internal voltage reference and provides a serial LVDS data interface for efficient data transmission. Designed for surface mount applications, it is supplied in a 48-LFCSP (7x7) package on tape and reel. This component is suitable for demanding applications across various industries, including test and measurement, communications infrastructure, and medical imaging systems, where high-speed, high-resolution signal acquisition is critical. The device operates with analog and digital supply voltages ranging from 1.7V to 1.9V and is specified for operation within a temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Serial |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 125M |
| Input Type | Differential |
| Number of Inputs | 4 |
| Supplier Device Package | 48-LFCSP (7x7) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 4 |
