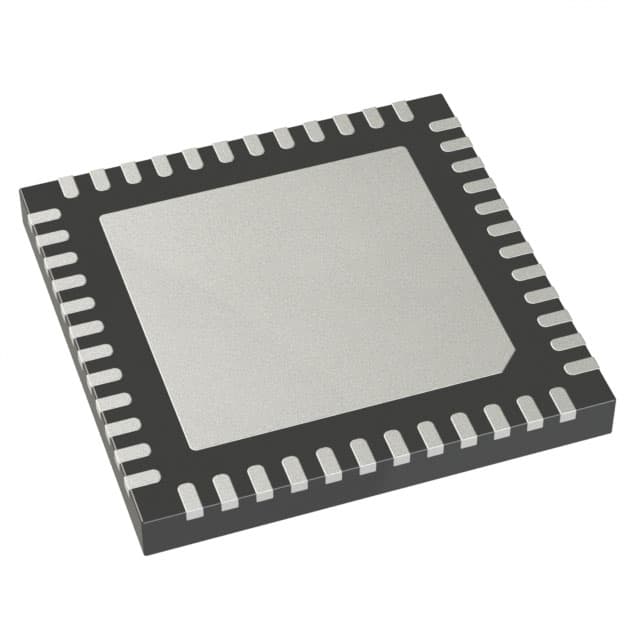

AD9253BCPZRL7-105
IC ADC 14BIT PIPELINED 48LFCSPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. AD9253BCPZRL7-105 is a quad 14-bit, 105 MSPS pipelined analog-to-digital converter. This component features four independent ADC cores, each capable of simultaneous sampling from differential inputs. Its architecture is designed for high-speed data acquisition with a versatile LVDS serial data interface. The AD9253BCPZRL7-105 includes an internal voltage reference and operates with analog and digital supply voltages ranging from 1.7V to 1.9V. Packaged in a 48-LFCSP (7x7) surface-mount format and supplied on tape and reel, this device is suitable for demanding applications in telecommunications, medical imaging, and test and measurement equipment. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Serial |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 105M |
| Input Type | Differential |
| Number of Inputs | 4 |
| Supplier Device Package | 48-LFCSP (7x7) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 4 |
