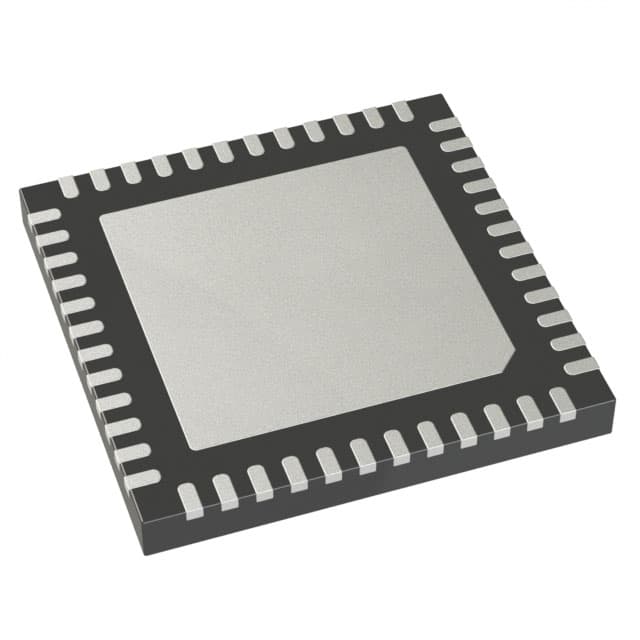

AD9253BCPZ-125
IC ADC 14BIT PIPELINED 48LFCSPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD9253BCPZ-125 is a 14-bit, 125 MSPS pipelined analog-to-digital converter. This device features four independent ADC channels, each capable of simultaneous sampling, making it suitable for applications requiring precise multi-channel signal acquisition. The AD9253BCPZ-125 utilizes an LVDS serial data interface for efficient data transfer. Its architecture supports a 1:1 S/H-to-ADC ratio and includes an internal voltage reference. Designed for surface mounting, this component is housed in a 48-LFCSP (7x7) package. Typical applications include digital beamforming, software-defined radio, and medical imaging. Operating with analog and digital supply voltages between 1.7V and 1.9V, it maintains performance across an industrial temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tray |
| Package / Case | 48-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Serial |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 125M |
| Input Type | Differential |
| Number of Inputs | 4 |
| Supplier Device Package | 48-LFCSP (7x7) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 4 |
