AD9250BCPZ-250
IC ADC 14BIT PIPELINED 48LFCSPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. AD9250BCPZ-250 is a high-performance 14-bit analog-to-digital converter featuring a pipelined architecture. This component offers a sampling rate of up to 250 MSPS per channel, supporting two input channels with simultaneous sampling capabilities. It utilizes a differential input type and includes internal reference circuitry. The AD9250BCPZ-250 is housed in a 48-lead LFCSP (7x7) package, designed for surface mounting. Its data interface is compliant with JESD204B standards. This device operates within an analog and digital supply voltage range of 1.7V to 1.9V and is specified for operation across a temperature range of -40°C to 85°C. It finds application in demanding fields such as test and measurement, medical imaging, and communications infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Bulk |

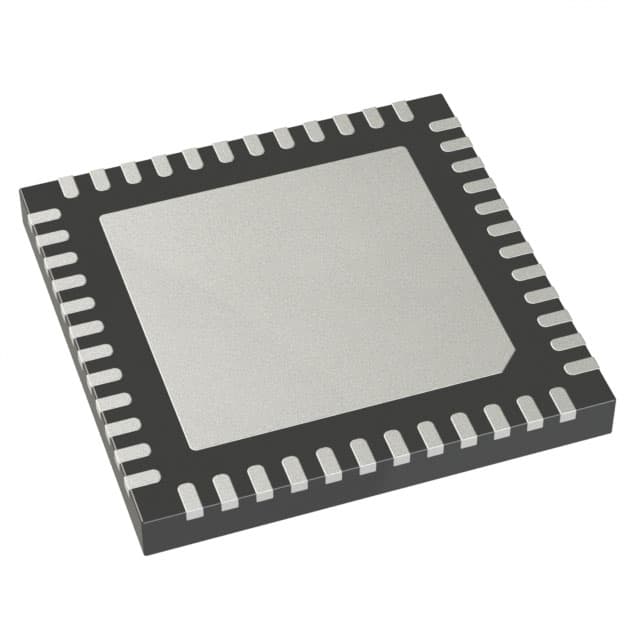

| Package / Case | 48-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | JESD204B |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Sampling Rate (Per Second) | 250M |
| Input Type | Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 48-LFCSP (7x7) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
