AD9236BCP-80
IC ADC 12BIT 80MSPS 32-LFCSPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More

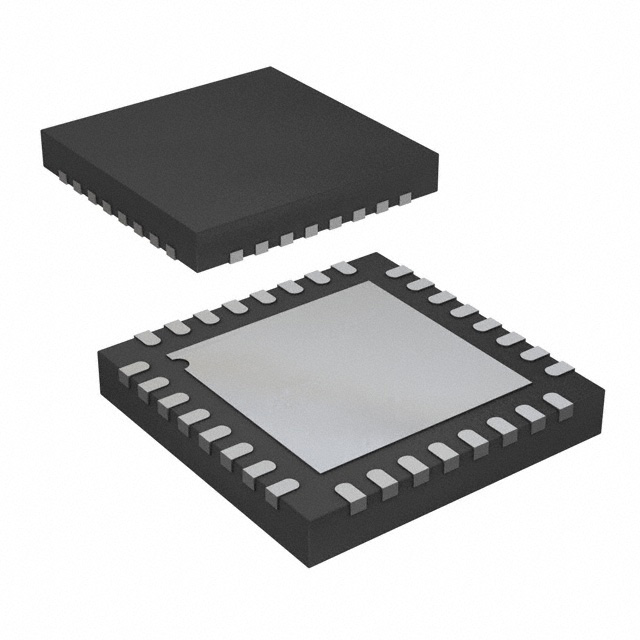

Analog Devices Inc. AD9236BCP-80 is a 12-bit, 80 MSPS dual analog-to-digital converter (ADC). This device features a flexible analog input range and a selectable voltage reference. The AD9236BCP-80 offers a high signal-to-noise ratio (SNR) and excellent linearity, making it suitable for demanding applications. The digital output formats are configurable for standard LVDS interfaces. Its 32-lead LFCSP_WQ (5x5) package with an exposed pad facilitates efficient heat dissipation and robust surface-mount integration. This component is commonly employed in medical imaging, high-speed data acquisition, and communications infrastructure.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | 32-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | - |
| Operating Temperature | -40°C ~ 85°C |
| Sampling Rate (Per Second) | 80M |
| Supplier Device Package | 32-LFCSP-WQ (5x5) |
| Number of A/D Converters | 2 |
