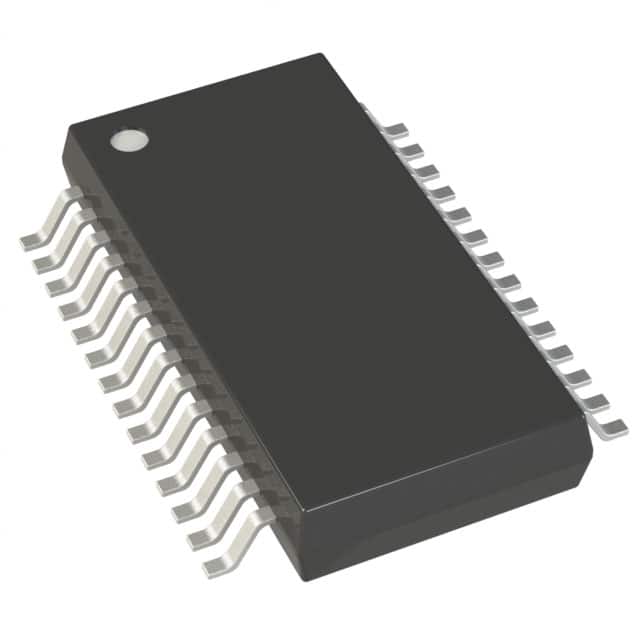

AD9226ARSRL
IC ADC 12BIT PIPELINED 28SSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. AD9226ARSRL is a 12-bit, 65 MSPS pipelined Analog-to-Digital Converter (ADC). This device features a single channel and supports both differential and single-ended input types, configurable with its integrated sample-and-hold (S/H) circuitry. The AD9226ARSRL offers a flexible reference input, accepting either external or internal references. Data is output via a parallel interface. Its architecture is optimized for high-speed data acquisition and is commonly utilized in applications such as medical imaging, digital communication systems, and test and measurement equipment, operating across a temperature range of -40°C to 85°C. The component is supplied in a 28-SSOP package, available on tape and reel for surface mounting. Analog supply voltage is 5V, with digital supply ranging from 2.85V to 5.25V.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.85V ~ 5.25V |
| Sampling Rate (Per Second) | 65M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 28-SSOP |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
