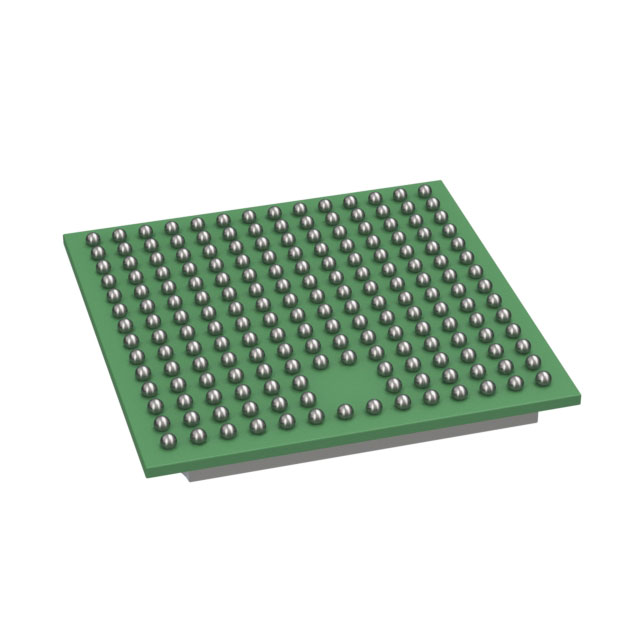

AD9213BBPZ-6G
IC ADC 12BIT PIPELINED 192BGAManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
12 Bit Analog to Digital Converter 1 Input 1 Pipelined 192-BGA-ED (12x12)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tray |
| Package / Case | 192-LFBGA Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | ADC |
| Data Interface | JESD204B |
| Reference Type | Internal |
| Operating Temperature | -20°C ~ 115°C |
| Voltage - Supply, Analog | 0.975V ~ 1.025V |
| Voltage - Supply, Digital | 0.975V ~ 1.025V |
| Sampling Rate (Per Second) | 6G |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 192-BGA-ED (12x12) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
