AD9212ABCPZRL7-65
IC ADC 10BIT SRL 65MSPS 64LFCSPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD9212ABCPZRL7-65 is a 10-bit, 65 MSPS analog-to-digital converter. This pipelined ADC features eight differential inputs, supporting simultaneous sampling. The serial LVDS data interface facilitates efficient data transfer. With an internal voltage reference and a common mode rejection ratio (CMRR) of 80 dB, it offers robust performance. The AD9212ABCPZRL7-65 is housed in a 64-LFCSP-VQ (9x9) package, suitable for surface mounting. Operating within an analog and digital supply voltage range of 1.8V, it performs reliably across a temperature range of -40°C to 85°C. This component is widely adopted in telecommunications, instrumentation, and medical imaging applications.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Bulk |

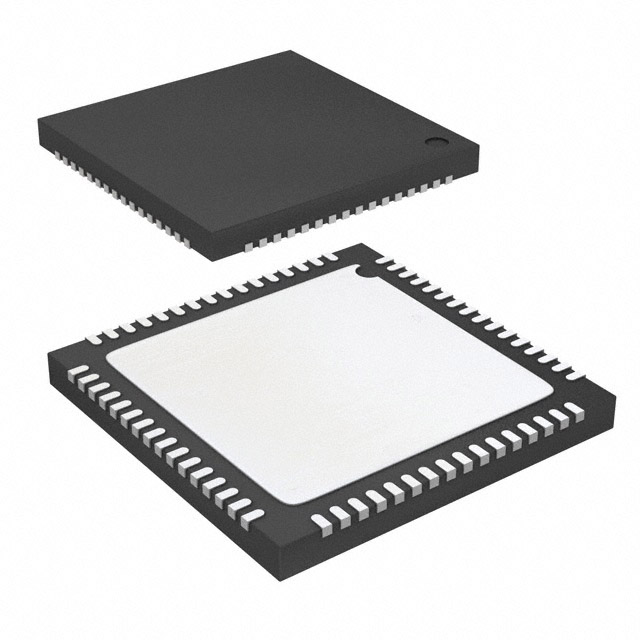

| Package / Case | 64-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | ADC |
| Data Interface | LVDS - Serial |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.8V |
| Voltage - Supply, Digital | 1.8V |
| Sampling Rate (Per Second) | 65M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 8 |
| Supplier Device Package | 64-LFCSP-VQ (9x9) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 8 |
