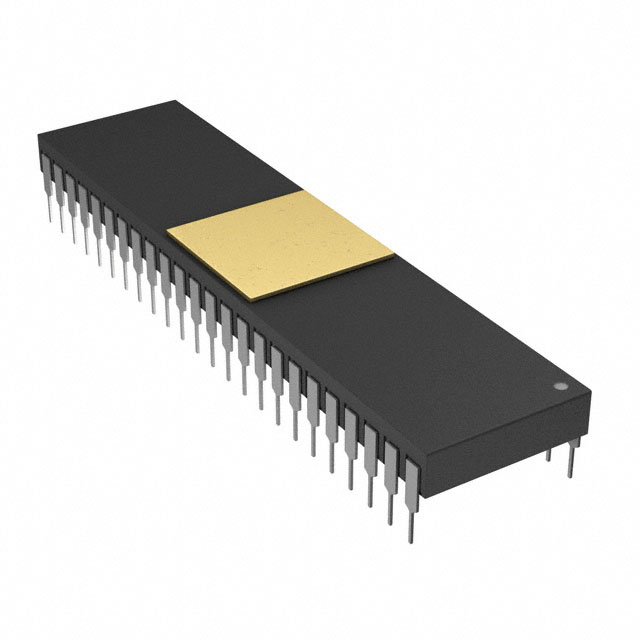

AD9058AKD
IC ADC 8BIT FLASH 48CDIPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD9058AKD is an 8-bit, dual-channel, 50 MSPS flash Analog-to-Digital Converter (ADC) housed in a 48-CDIP package. This component offers simultaneous sampling capabilities, ideal for applications requiring high-speed data acquisition. The AD9058AKD features a parallel data interface for efficient data transfer and supports single-ended input types. Its architecture is based on flash conversion, ensuring rapid conversion times. This device is suitable for use in test and measurement equipment, medical imaging systems, and telecommunications infrastructure. The operating temperature range is 0°C to 70°C, and it requires analog and digital supply voltages of ±5V.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tube |
| Package / Case | 48-CDIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Number of Bits | 8 |
| Configuration | ADC |
| Data Interface | Parallel |
| Reference Type | Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | ±5V |
| Sampling Rate (Per Second) | 50M |
| Input Type | Single Ended |
| Number of Inputs | 2 |
| Supplier Device Package | 48-CDIP |
| Architecture | FLASH |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 2 |
